User Interactions

The Dingi Maps SDK for iOS provides a set of built-in gesture recognizers. You can customize or supplement these gestures according to your use case. You see what gesture recognizers are on your DingiMapView by accessing the gestureRecognizers property on your map.

Configuring user interaction

Several properties on an DingiMapView provide ways to enable or disable a set of gesture recognizers. Boolean values are set to YES by default.

• zoomEnabled - Allows the user to zoom in or out by pinching two fingers, double-tapping, tapping with two fingers, or double-tapping then dragging vertically. Accepts Boolean values.
• scrollEnabled - Allows the user to scroll by dragging or swiping one finger. Accepts Boolean values.
• rotateEnabled - Allows the user to rotate by moving two fingers in a circular motion. Accepts Boolean values.
• pitchEnabled - Allows the user to tilt the map by vertically dragging two fingers. Accepts Boolean values.
• decelerationRate - Determines the rate of deceleration after the user lifts their finger. You can set the value using the DingiMapViewDecelerationRateNormal, DingiMapViewDecelerationRateFast, or DingiMapViewDecelerationRateImmediate constants.

Individual gestures

Gesture	Description	Related Property
Pinch	Zooms in or out on the map’s anchor point	zoomEnabled

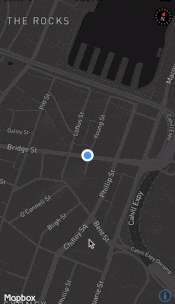

Rotation	Changes the DingiMapView direction based on the user rotating two fingers in a circular motion	rotateEnabled
Single tap	Selects/deselects the annotation that you tap.
Double tap	Zooms in on the map’s anchor point	zoomEnabled
Two-finger tap	Zooms out with the map’s anchor point centered	zoomEnabled
Pan	Scrolls across mapView (note: if DingiUserTrackingModeFollow is being used, it will be disabled once the user pans)	scrollEnabled
Two-finger drag	Adjusts the pitch of the DingiMapView	pitchEnabled

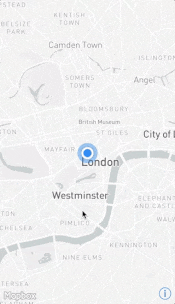

One-finger zoom	Tap twice; on second tap, hold your finger on the map and pan up to zoom in, or down to zoom out	zoomEnabled

Adding custom gesture recognizers

You can add UIGestureRecognizers to your map programmatically or via storyboard. Adding custom responses to gesture recognizers can enhance your user’s experience, but try to use standard gestures where possible.

The gesture recognizers that you add will take priority over the built-in gesture recognizer. You can also set up your own gesture recognizer to work simultaneously with built-in gesture recognizers by using -gestureRecognizer:shouldRecognizeSimultaneouslyWithGestureRecognizer:, allowing you to enhance already existing gesture recognizers.

You can also add gesture recognizers that are only called when the default gesture recognizer fails (and vice versa), such as when a user taps on a part of the map that is not an annotation. The documentation for DingiMapView includes an example of how to create a fallback gesture recognizer.

If you would like to disable a specific set of gesture recognizers, such as zoom, you can set the Boolean value for the appropriate property to NO. You can then add your own gesture recognizers to perform those actions.
